BG30/1804/HS

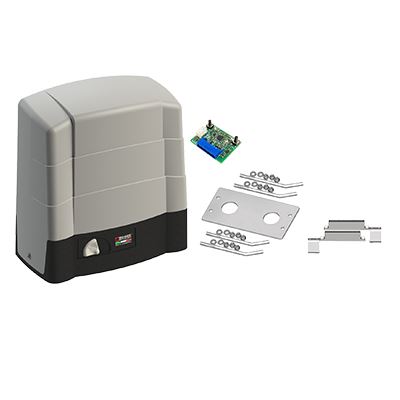

Electromechanical motor HIGH SPEED BRUSHLESS, low voltage, super intensive use, with native encoder on-board, irreversible, ideal for sliding gates up to 1800 kg with built-in digital controller B70 series. Complete with fixing plate with tie rods and magnetic limit switch. With 2-channel radio receiver installed on board.- Max gate weight: 1800 kg
- Power line supply: 230V AC - 50Hz
- Stand-by consumption: ≤ 0,5W
- Motor power supply: 36V
- Power rating: 650W
- Frequency of use: Intensive use
- Thrust: 50 - 1250N
- Operating temperature: -20+55°C
- Protection level: IP44
- Reductor Type: Irreversible
- Manoeuvre speed: 18 m/min (0.30 m/s)
- Limit switch: Magnetic
- Onboard control unit: B70/1DCHP
- Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
- Batteries recovery: Optional 2 external battery 12V 4,5AH
- Type exit gear: Z17/mod 4
- Operating cycles per day (opening/closing - 24 hours no stop): 800
- Maximum dimension product in mm (L x W x H): 350 x 220 x 380
- Product weight packed (Kg): 18,7
- Number items per pallet/box: 30
