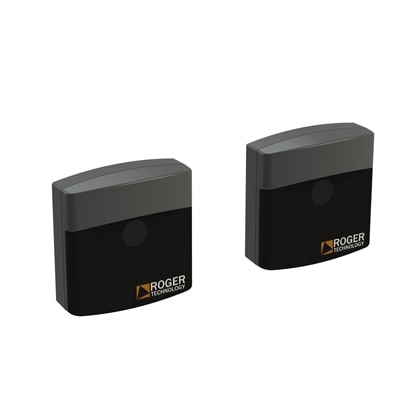

G90/F2ES
Pair of external photocells synchronized.
- Standard power: 12/24V AC 50Hz - 12/24V DC
- Absorption: TX=19mA, RX=20mA
- Operating temperature: -20+55°C
- Protection level: IP55
- Maximum distance in open field: 10 - 15 m
- Maximun number of photocells synchronized: 2
- Orientation angle: -
- Relay contacts max current: 0,5A RX
- Relay contacts max voltage: 30V
- Installation Type: External
- Maximum dimension product in mm (L x W x H): 77 x 75 x 29,2
- Product weight packed (Kg): 0,2
- Number items per pallet/box: 20
