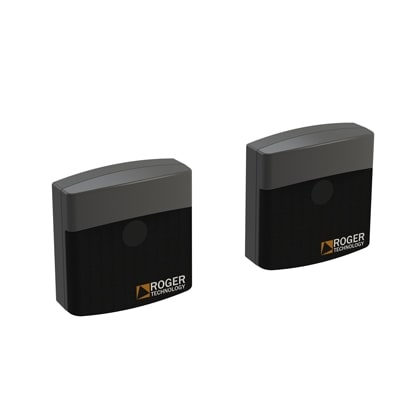

G90/F4ES
Pair of external photocells synchronized 24V AC/DC, up to 4 pair.
- Standard power: 24V AC 50Hz - 24V DC
- Absorption: TX 18 mA - RX 27 mA
- Operating temperature: -20+55°C
- Protection level: IP55
- Maximum distance in open field: 10 - 15 m
- Maximun number of photocells synchronized: 4
- Orientation angle: -
- Relay contacts max current: 0,5A RX
- Relay contacts max voltage: 30V
- Installation Type: External
- Maximum dimension product in mm (L x W x H): 77 x 75 x 29,2
- Product weight packed (Kg): 0,2
- Number items per pallet/box: 20
