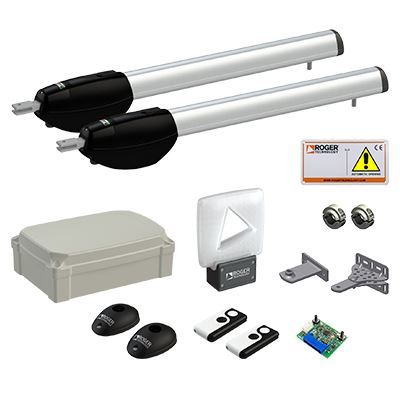

KIT BE20/410
KIT electromechanical actuator BRUSHLESS low voltage, super intensive use, with native encoder on-board, irreversible, ideal for swing gates with leaf up to 4 m, with mechanical stopper in opening and closing. Complete with long brackets to screw on. With 2-channel radio receiver installed on board.- Power line supply: 230V AC - 50Hz
- Stand-by consumption: ≤ 0,5W
- Motor power supply: 36V
- Power rating: 200W
- Frequency of use: Intensive use
- Thrust: 100 - 2800N
- Operating temperature: -20 C° +55 C°
- Protection level: IP44
- Reductor Type: Irreversible
- Manoeuvre speed: 1,66 cm/s
- Opening time: 17-26 s
- Stroke: 550 mm
- Limit switch: Mechanical stopper in opening and closing
- Recommended digital controllers: -
- Encoder: Digital native encoder SENSORLESS 48 PPR
- Operating cycles per day (opening/closing - 24 hours no stop): 1000
- Maximum dimension product in mm (L x W x H): 1019 x 105 x 155
- Product weight packed (Kg): 23,7
- Number items per pallet/box: 18
