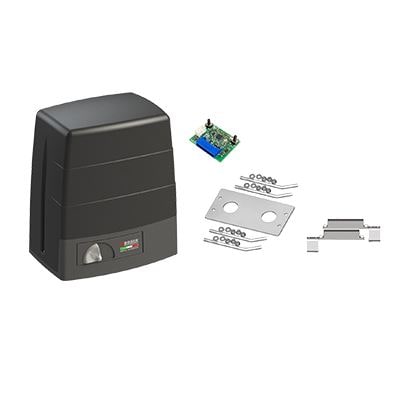

KIT BM30/326/HS

Electromechanical motor HIGH SPEED BRUSHLESS low voltage, super intensive use, irreversible, ideal for sliding gates up to 400 kg with built-in digital controller B70 series. Complete with fixing plate with tie rods and magnetic limit switch. With 2-channel radio receiver installed on board.

• Max gate weight: 400 kg
• Power line supply: 230V AC - 50Hz
• Stand-by consumption: ≤ 0,5W
• Motor power supply: 24V
• Power rating: 125W
• Frequency of use: Intensive use
• Thrust: 50 - 350N
• Operating temperature: -20+55°C
• Protection level: IP44
• Reductor Type: Irreversible
• Manoeuvre speed: 26 m/min (0.44 m/s)
• Limit switch: Magnetic
• Onboard control unit: B70/1DC
• Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
• Type exit gear: Z15/mod 4
• Operating cycles per day (opening/closing - 24 hours no stop): 500
• Maximum dimension product in mm (L x W x H): 250 x 165 x 290
• Product weight packed (Kg): 10,8
• Number items per pallet/box: 44
