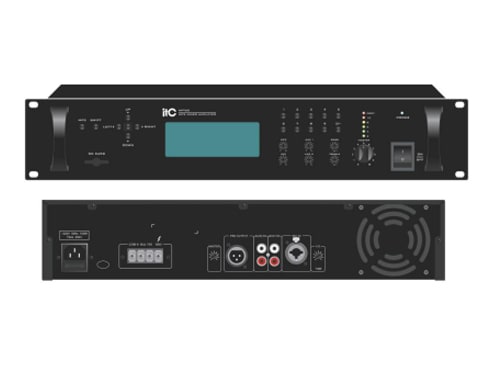

MPT240 MP3 Amplifier with Timer
MPT240 MP3 Amplifier with Timer (For Small Scheduled Application eg . coffee shop & chain supermarket)
- Mixer amplifier with MP3 source (SD card storage), programmable to play MP3 music.
- Suitable for small background music playing places
Features：
- Large LCD display, simple operation interface, and support Chinese and English bilingual operation.
- Mixer amplifier built-in MP3 and weekly timer.
- Play, all play, circle, repeat, random play modes.
- The program consists of four sets of main program and one set of standby program;
- Support number key to select the playback.
- Bass/treble tone control and volume control for MP3, Mic, Aux1-2 and master volume control.
- Priority：MIC> line input >MP3 audio source.
- Built-in high and low pitch adjustment function, and automatic control gain voltage limit function.
- Automatically cut off the main power supply function when there is no sound source signal, and automatically enter the energy-saving mode.
- Speaker output: 70V, 100V and 4-16Ω.
- Extensive protection include high temp, overload and short circuit.
Specifications：
- Model: MPT240
- Power Output(THD 1%): 240W
- Speaker Outputs: 70V, 100V & 4~16Ω
- MIC Input Sensitivity/Impedance: 5mV/600Ω
- AUX 1-2 Input Sensitivity/Impedance: 350mV/10KΩ
- S/N Ratio: ≥66dB
- SD File System: Support both FAT16 and FAT32, do not support file format. Support up to 4GB as the file size. The maximum number of playable files is 65534.
- Mp3 Format: Support MPEG audio 1, 2 and 2.5. Support Layer 1, 2 and 3. Support sample rates 8k, 16k, 32k, 11.025k, 22.05k, 44.1k, 12k, 24k and 48kHz. Support bit rate 8 to 320 kbps.
- Frequency Response: 50Hz~18KHz (±3dB)
- Bass and Treble Control: 100Hz-±10dB; 10kHz ±10dB
- Pre Output: 1V/600Ω
- THD: ≤0.5% at 1KHz, 1/3 rated power
- Program Steps: Total 512 Steps, 1 day≤200 Steps
- Time Mode: 24-hour system
- Power Supply: ~220V 50Hz
- Power Consumption: 350W
- Dimensions: 484 x 358 x 88mm
- Weight: 12.12Kg
