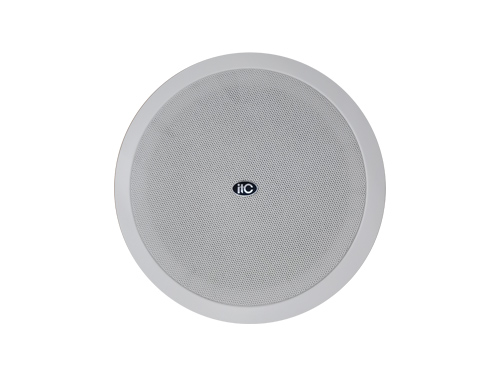

T-208A Ceiling Speaker
T-208A Ceiling Speaker (Coaxial Speaker) (3.75W-7.5W-15W-30W)
Specification:
| Model | T-208A |
| Power taps @100V | 3.75W, 7.5W, 15W, 30W |
| Power taps @70V | 1.87W, 3.75W, 7.5W, 15W |
| Impedance | Black: Com Blue: 2.6KΩ Red: 1.3KΩ |
| Green: 2KΩ White: 1KΩ | |
| SPL(1W/1M) | 94dB |
| Max. SPL (Rated W/1M) | 109dB |
| Frequency response (-10dB) | 60-20KHz |
| Finish | Baffle: ABS, White Grille: Steel, White |
| Speaker driver | 8" x 1 1.5" x 1 |
| Cutout size | 245mm |
| Dimensions | 280 x 80mm |
| Weight | 1.6Kg |
| Mounting | Flush-mount dog ears |
