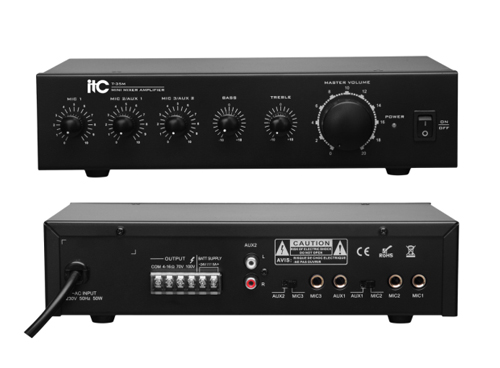

| Model |
T-35M |
| Rated Power Output |
35W |
| Speaker Outputs |
70V, 100V & 4~8Ω |
| Input Sensitivity & Impedance |
MIC 1, 2, 3: 5mV/600Ω |
| MIC2: 775mV/10KΩ |
| AUX2: 350mV/10KΩ |
| Output Sensitivity & Impedance |
MIX OUT: 1V/470Ω |
| Tone |
Bass: ±10dB at 100Hz |
| Treble: ±10dB at 10KHz |
| Frequency Response |
50Hz~16KHz (+1dB, -3dB) |
| S/N Ratio |
MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB |
| THD |
Less than 0.5% at 1KHz, 1/3 rated power |
| Crosstalk |
≤50dB |
| Cooling |
Fan automatically start up when temp reaches 55℃ |
| Protection |
High temp, overload & short-circuit |
| Power Supply |
~110V-230V 50/60Hz |
| Power Consumption |
60W |
| Weight |
3Kg |
| Dimensions |
484 x 335 x 88mm |
| Finish |
Panel: aluminum plate, black |
| Case: SPCC Panel |
