Features:

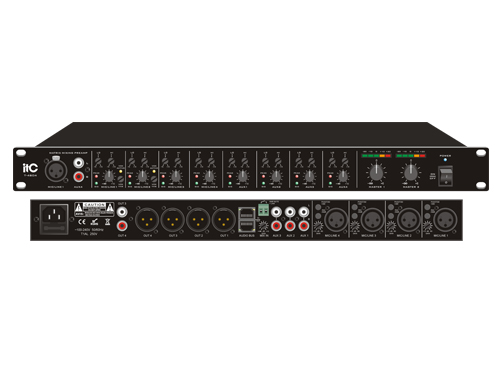

•  Standard machine cabinet type 1 U height design, black aluminuim oxide draw bench panel.
• 4 MIC/LINE XLR balanced inputs, providing 48V phantom power switch.
• 4 AUX accessory unbalanced inputs, there are 2 RCA in each channel,  and one of them is on the panel.
• Each channel is equipped with volume control and tone control.
• Signal/peak value LED light monitors the input level of every channel.
• MIC/LINE1,MIC/LINE2 internally installed low cut.
• Each input channel can be assigned to output channel freely through jumper.
• The panel provides one channel of MIC/LINE input in addition, parallel connected with MIC/LINE1.
• MIC1/MIC2 priority control, and adjustable threshold value.
• 4 XLR balanced outputs, in parallel connection with 2 channels of RCA unbalanced outputs.
• 4 RJ45 bus balanced inputs, whose volume is adjustable, and can be mixed correspondingly into 4 channel XLR outputs.
• 4s of RJ45 bus balanced outputs mixed signal.
• Output level indicate.
• External mute controls for all channels.
• Switching power supply provides electricity.
