| Model |

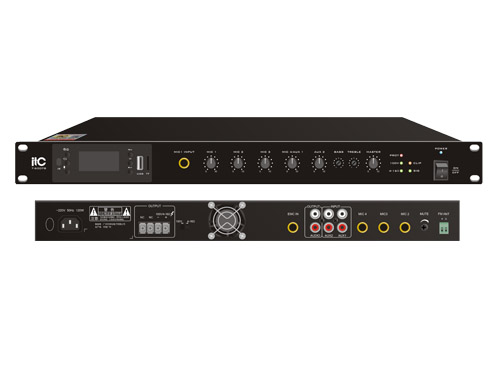

T-60DTB |
| Output |
4-16Ω, 100V |
| RMS Power |
60W |
| Input Sensitivity And Impedance |
MIC1,2,3,4 input: 5mV / 600Ω unbalanced 6.3 connection terminal; |
| AUX1,2 input: 350mV / 10KΩ unbalanced RCA connection terminal; |
| EMC input: 775mv / 10KΩ unbalanced 6.3 connection terminal |
| Output Sensitivity & Source Impedance |
MIX OUT: 1000mV / 470Ω unbalanced RCA connection terminal |
| Tone |
Bass: ± 10dB at 100Hz; |
| Treble: ± 10dB at 10KHz |
| Frequency Response |
80Hz ~18KHz (+ 1dB, -3dB) |
| SNR |
MIC1,2,3: 66dB; AUX1,2: 80dB |
| THD |
< 0.5% (at 1KHz, 1/3 rated power) |
| Mute Function |
MIC 1 is prior to MIC2-4, AUX1-2 audio input; EMC is prior to all audio inputs |
| Channel Crosstalk Attenuation |
≥50dB |
| Heat Dissipation |
Side-in and rear-out forced fan cooling; fan starts automatically when the device is turned on; infinitely variable speed |
| Protection |
Overheat protection, overcurrent protection, short circuit protection |
| Power Supply |
~ 220 -240V/ 50Hz |
| Power Consumption |
40W |
| Dimension |
484 ×300 × 44mm |
| Weight |
3.5Kg |
