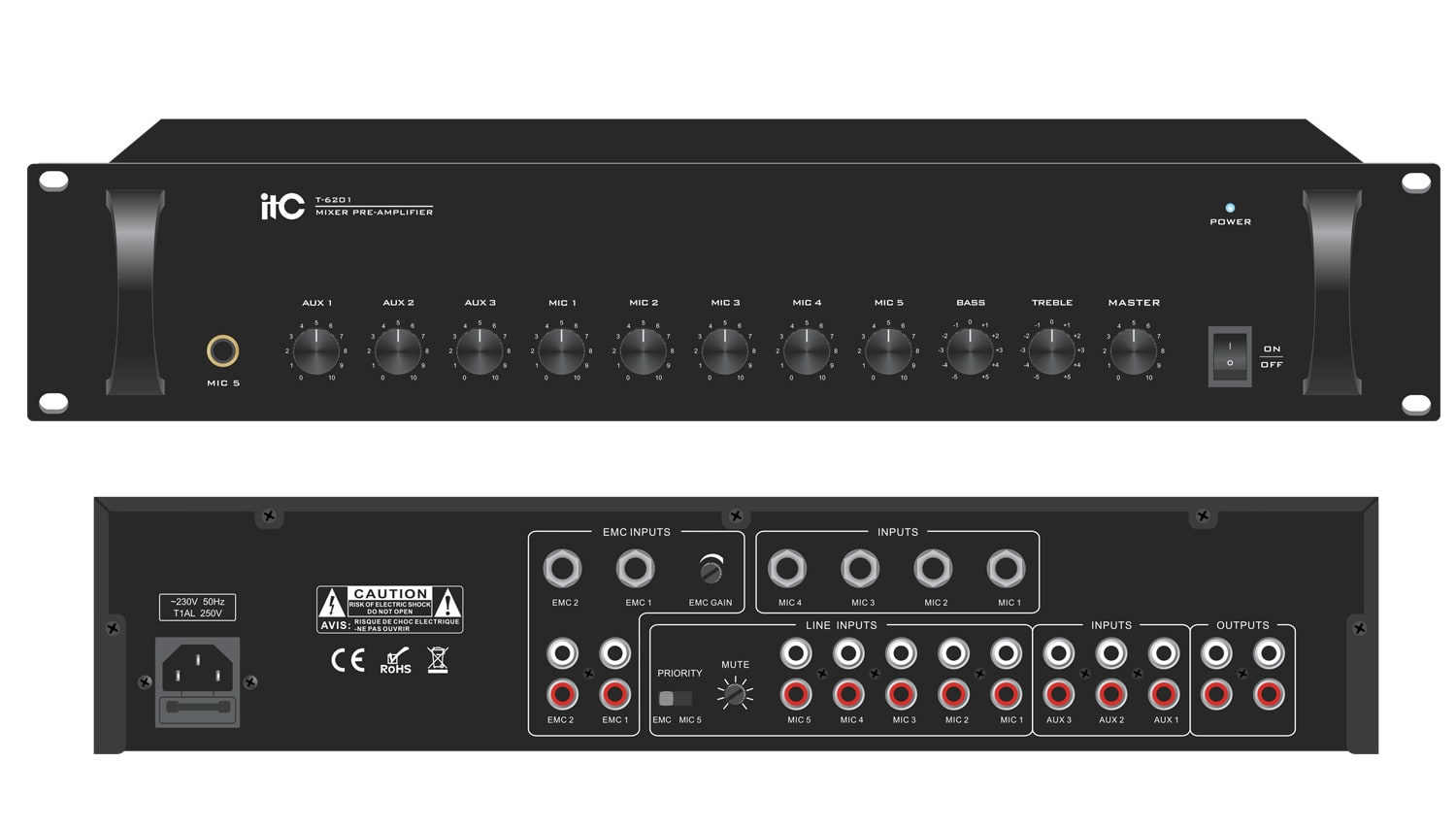

T-6201 Pre-Amplifier
Description:
- Preamplifier with multi-channel microphone, audio and emergency signal input lines and single-channel output.
- It is suitable for pre-stage amplification of common sound sources.
Features:
- Standard cabinet design (2U), humanized design and exquisite workmanship show high-grade temperament.
- It has 5 microphone (MIC) inputs, 3 standard signal line (AUX) inputs and 2 emergency line (EMC) inputs.
- The fifth microphone (MIC5) has the highest priority and forced cut-in priority functions; MIC5 and EMC's highest priority functions can be alternately selected by pulling the switch, and customers can choose priority according to their usage.
- The 4-way emergency input line has the functions of secondary priority and forced cut-in priority.
- The MIC1, 2, 3, 4, 5, and 2 emergency input (EMC) channels are equipped with line auxiliary input interface functions.
- MIC1, 2, 3, 4, and AUX1, 2, and 3 can cross-mix outputs.
- Both the microphone (MIC) input channel and the line (AUX) input channel can independently adjust the volume and are equipped with a total volume control knob.
- It has independent adjustment of treble (TREBLE) and bass (BASS).
- It has mute depth adjustment knob and EMC input gain adjustment knob.
Specifications：
| Model | T-6201 |
| Input Sensitivity of Microphones 1-5: | Microphone: 5mV/600unbalanced; Line RCA: 775mV/10K unbalanced |
| Auxiliary 1-3 Inputs | AUX 1.2. 3: 3500mV/10K non-equilibrium |
| EMC1-2 Input | RAC: unbalanced 200mV ~ 1000mV/10K |
| MIC: unbalanced 5mV ~ 25mV/600 | |
| Frequency response | 20Hz-20KHz (± 3 dB) |
| Signal-to-noise ratio | 50dB MIC input; 80dB AUX input |
| Tone adjustment | Bass: ± 10 dB at 100Hz; ± 10 dB at 10kHz treble |
| Power supply | ~ 220V 50Hz |
| Power Supply Dissipation | 20W |
| Dimensions | 484 × 303 × 88 mm |
| Weight | 4.54 kg |
