| Model |

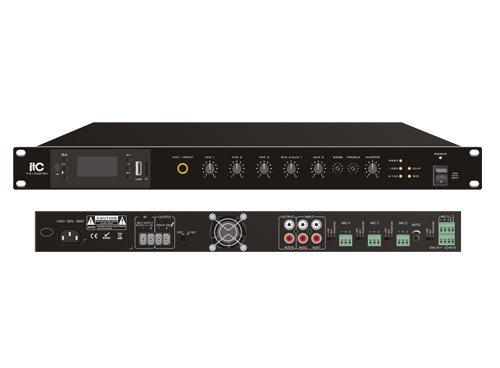

T-B60DTBV |
| Output Terminals |
4-16Ω, 100V |
| Rated Power |
60W |
| Input Sensitivity & Impedance |
MIC1, 2, 3, 4 input: 5mV/600Ω balanced European connection terminal; |
| AUX1, 2 input: 350mV/10KΩ unbalanced RCA connection terminal; |
| EMC input: 775mV/10KΩ unbalanced European connection terminal |
| Output Sensitivity &source Impedance |
MIX OUT:1000mV/470Ω unbalanced RCA connection terminal |
| Tone |
Bass:±10dB at 100Hz; |
| Treble:±10dB at 10KHz |
| Frequency response |
80Hz~16KHz(+1dB,-3dB) |
| SNR |
MIC1, 2, 3: 66dB; AUX1, 2: 80dB |
| THD |
Less than 0.5% (@1KHz, 1/3 rated power) |
| Phantom Power Supply |
48V (±2V) |
| Mute Function |
MIC1 prior to MIC2-4, AUX1-2 audio input, EMC prior to all audio input |
| Channel Crosstalk Attenuation |
≥50dB |
| Cooling |
Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed |
| Protection |
Overheat protection, over current protection, short circuit protection |
| Power Supply |
~220-240V / 50Hz |
| Power Consumption |
120W |
| Dimension |
484×300×44mm |
| Weight |
3.5Kg |
