| Model |

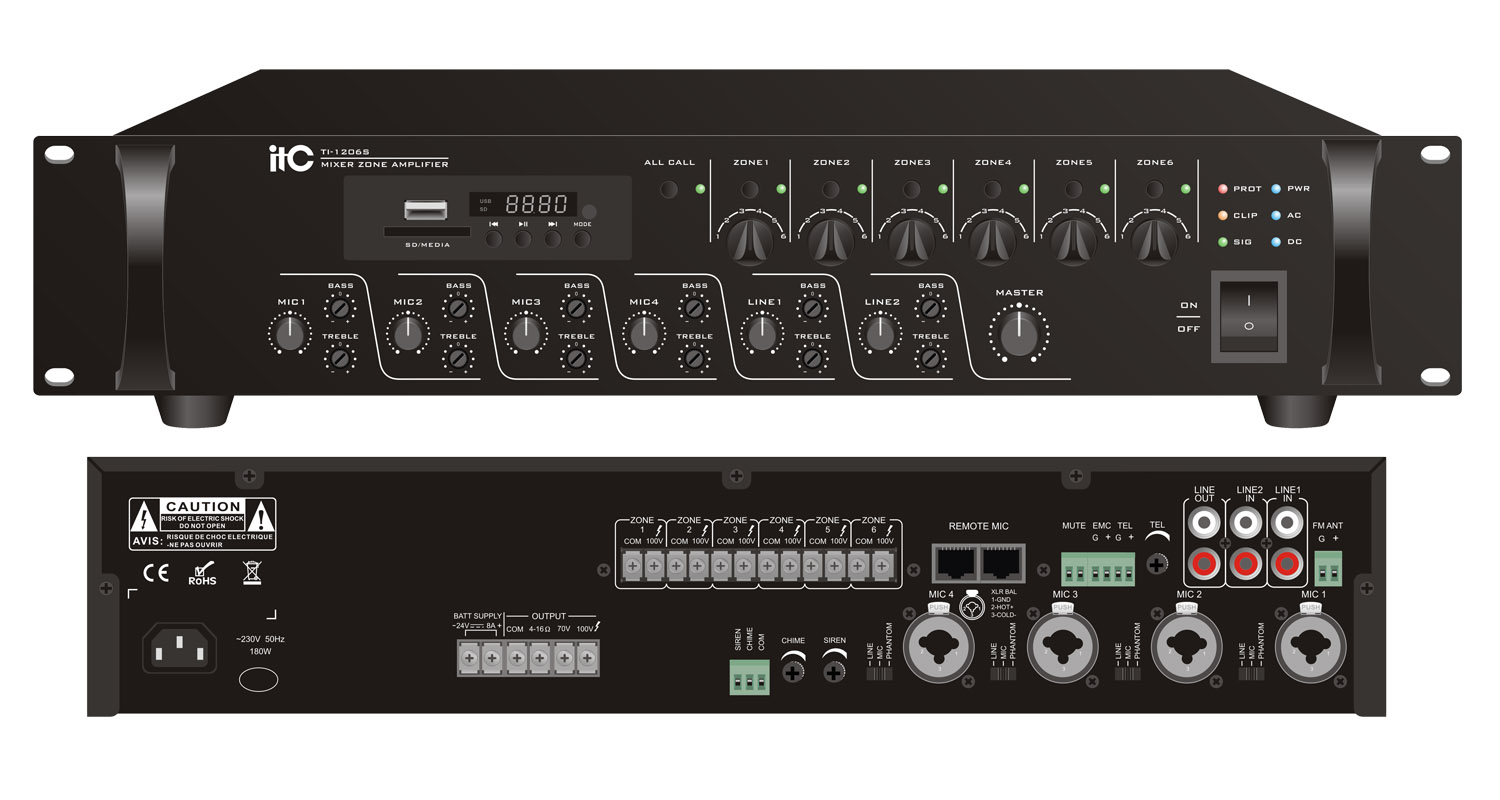

TI-1206S |
| Amplifier Section (Load 100V Output) |
Rated Output Power (THD 1%) |
| Speaker Zone 1~6 Output |
25W MAX |
| Mic Input Section (Mic 1~4 In@1KHz) |
Input Sensitivity/Impedance |
| S/N Ratio |
Better than 75dB |
| Frequency Response (±3dB) |
80Hz~18KHz |
| Tone Control (Bass:100Hz, Treble:10KHz) |
±10dB |
| Phantom Power |
+ 48V |
| Line Input Section (Mic 1~2 In@1KHz) |
Input Sensitivity/Impedance |
| S/N |
Better than 80dB |
| Frequency Response (±3dB) |
80Hz~16KHz |
| Tone Control (Bass: 100Hz,Treble:10KHz) |
±10dB |
| Tel Audio Input |
Input Sensitivity/Impedance |
| S/N |
Better than 75dB |
| Frequency Response (±3dB) |
50Hz~16KHz |
| EMC Audio Input |
Input Sensitivity/Impedance |
| S/N |
Better than 75dB |
| Frequency Response (±3dB) |
80Hz~16KHz |
| Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In) |
1V/600Ω |
| Remote MIC Sensitivity/Impedance |
775mV/10KΩ |
| THD |
≤ 0.1% at 1KHz, 1/3 rated power |
| Power Supply |
~110V/60Hz or ~230V/50Hz & DC 24V |
| Power Consumption |
210W |
| Weight |
6.7Kg |
| Dimensions |
484x310x88 mm |
