| Model |

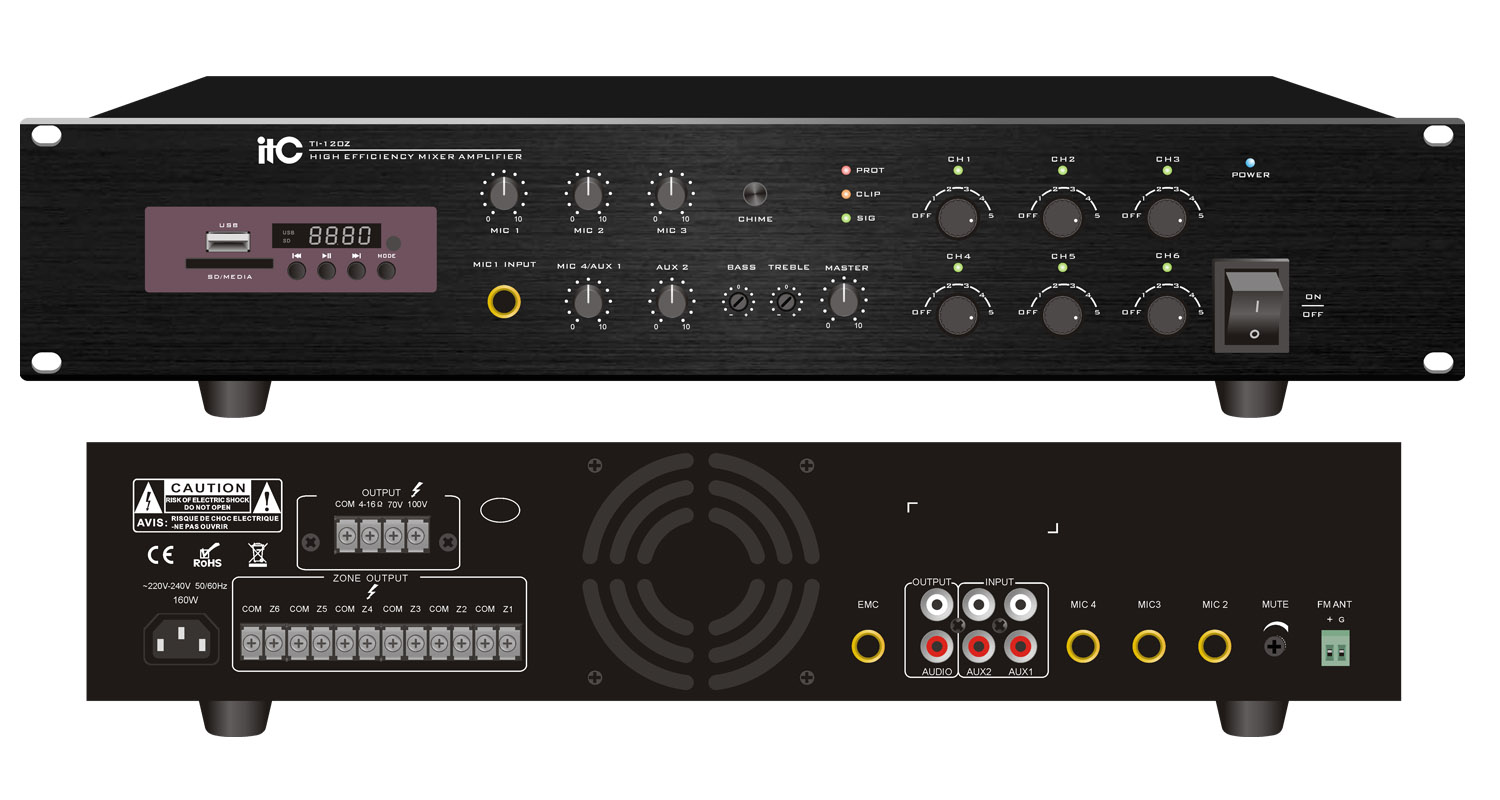

TI-120Z |
| Output terminal |
4-16Ω, 100V |
| Output Power |
120W |
| Input sensitivity & impedance |
MIC1, 2, 3, 4 Input:5mV/600Ω Unbalanced 6.3 connector |
| AUX1, 2 Input: 350mV/10KΩ Unbalanced RCA connector |
| EMC Input: 775mV/10KΩ Unbalanced 6.3 connector |
| Output sensitivity & source impedance |
MIX OUT:1000mV/470Ω Unbalanced RCA connector |
| Tone |
Bass: ±10dB at 100Hz |
| Treble: ±10dB at 10KHz |
| Frequency response |
50~16KHz(+1dB,-3dB) |
| SNR |
MIC1, 2, 3: 66dB; AUX1, 2: 80dB |
| THD |
< 0.5%(at 1KHz,1/3 Rated Power) |
| Mute function |
MIC 1 takes precedence over MIC2-4, AUX1-2 audio input, |
| EMC takes precedence over all audio inputs |
| Independent volume adjustment |
6 |
| Channel crosstalk attenuation |
≥50dB |
| Heat dissipation |
Side-in and back-out forced fan cooling. The fan starts |
| work when powered on with infinitely variable speed. |
| Protection |
Short circuit, overload and overheat |
| Power supply |
~220-240V /50Hz |
| Power consumption |
160W |
| Dimension |
484×353×88mm |
| Weight |
7.2Kg |
