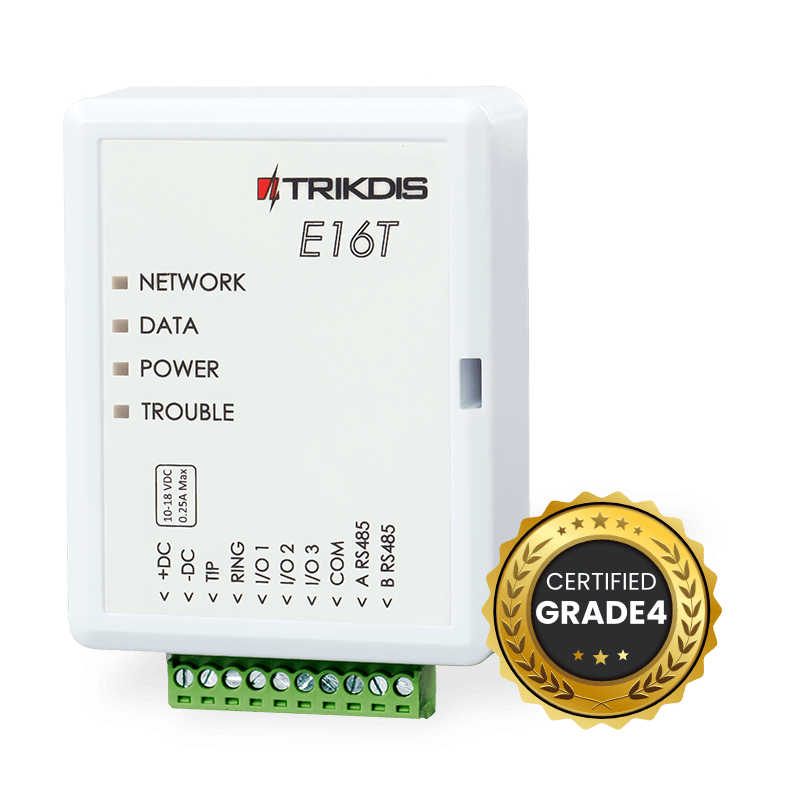

Ethernet communicator E16T
Communications:- Connection to control panels via:
- Telephone line communicator (TIP RING)
- Simultaneous event reporting to Protegus Mobile/Web application, allowing user to remotely control and monitor alarm system
- Communicator transfers all messages from control panel in Contact ID codes
- Messages in TCP/IP or UDP/IP protocol are sent to CMS
- SIA_DC09_2012 encryption protocol
- In case of lost connection with the main channel, switches automatically to backup channel
- 2 input, selectable type: NC, NO, EOL=2.2 kΩ
- 1 output controlled via:
- Mobile/Web application
