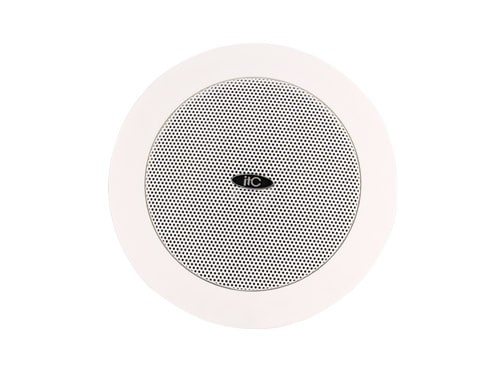

T-105U Ceiling Speaker (1.5W-3W-6W)
Features
High quality ceiling speaker, plastic basin frame, spring pressing system, convenient installation. It is suitable for hotels, hotels, clubs and so on.
| Model | T-105U |
| Power taps @100V | 1.5W, 3W, 6W |
| Power taps @70V | 0.75W, 1.5W, 3W |
| Impedance | Black: Com Red: 6.7KΩ | Green: 3.3KΩ White: 1.7KΩ |
| SPL (1W/1M) | 89dB |
| Frequency response (-10dB) | 80-20KHz |
| Speaker driver | 5″ × 1 |
| Cutout size | 145mm |
| Dimensions | 172 × 80mm |
| Weight | 0.75Kg |
